The Ultimate Guide to Tools for Building and Maintaining RC Airplanes

Introduction

Building and maintaining remote-controlled (RC) airplanes is a rewarding and intricate hobby that combines the joys of craftsmanship, engineering, and aviation. Whether you’re a seasoned RC enthusiast or a newcomer to the hobby, the right tools are essential for ensuring the longevity and performance of your aircraft. This comprehensive guide will take you through the most common and crucial tools needed to build, repair, and maintain RC airplanes, helping you assemble a professional-quality model while avoiding common pitfalls.

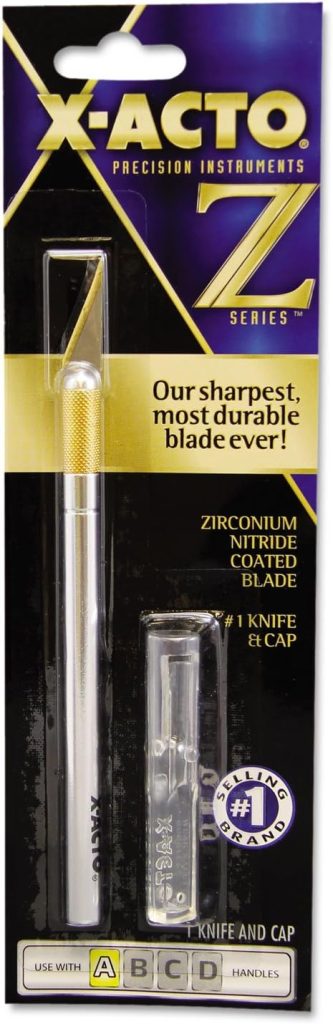

1. X-Acto Knife or Precision Hobby Knife

The X-Acto knife, specifically the X-Acto #1 Precision Knife, is an indispensable tool for any RC airplane builder. This knife is known for its sharp, interchangeable blades that provide exceptional precision when cutting through balsa wood, foam, and other light materials commonly used in RC airplanes.

When building an RC airplane, you’ll frequently encounter situations where you need to make precise cuts to fit parts together perfectly. Whether it’s trimming the edges of a balsa sheet to match the wing shape or creating fine detail on a custom part, the X-Acto knife allows for unparalleled accuracy. It’s particularly useful for scoring balsa wood before breaking it along the grain, a method that ensures cleaner cuts and stronger joints.

Maintaining the sharpness of your X-Acto blade is critical; a dull blade can tear the material rather than cutting it cleanly. Many builders keep a stock of replacement blades, such as the X-Acto Z-Series, which are known for their durability and sharpness. For maximum control, consider using the X-Acto #2 Knife with a heavier handle when cutting through thicker materials like plywood or plastic.

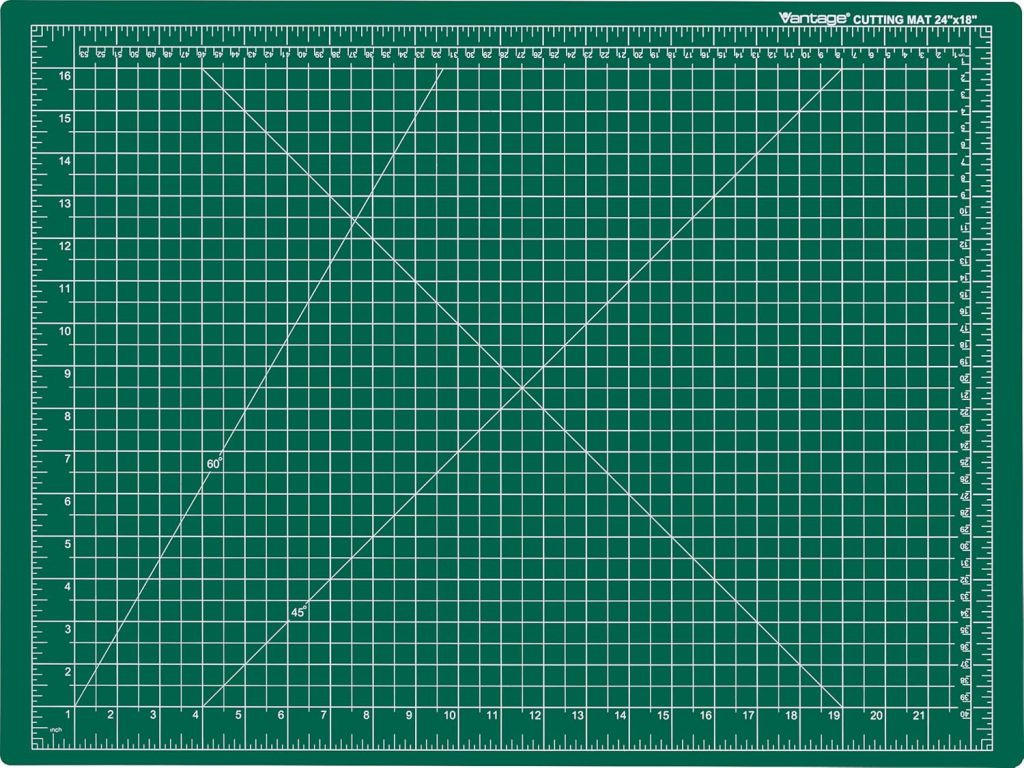

2. Cutting Mat

A self-healing cutting mat is another essential tool that works hand-in-hand with your X-Acto knife. Cutting mats provide a durable surface that protects your workbench from damage while also preserving the sharpness of your knife blades. Mats like the Alvin GBM Series offer high-quality, self-healing properties, meaning the mat will reseal after being cut, extending its lifespan.

These mats are typically marked with a grid pattern that aids in measuring and aligning cuts, which is invaluable when working with plans or templates. For instance, when cutting out wing ribs or fuselage formers from balsa wood, the grid on the cutting mat ensures your cuts are straight and accurate. The self-healing nature of these mats is particularly beneficial because it prevents the blade from catching in previous cuts, which could cause slippage and potentially ruin a delicate part.

Cutting mats come in various sizes, but a larger mat, like a 24” x 36” model, is often preferred because it provides ample space for working on bigger components without needing to reposition your material frequently. This size is particularly useful when laying out and cutting long parts, such as wing spars or fuselage sides.

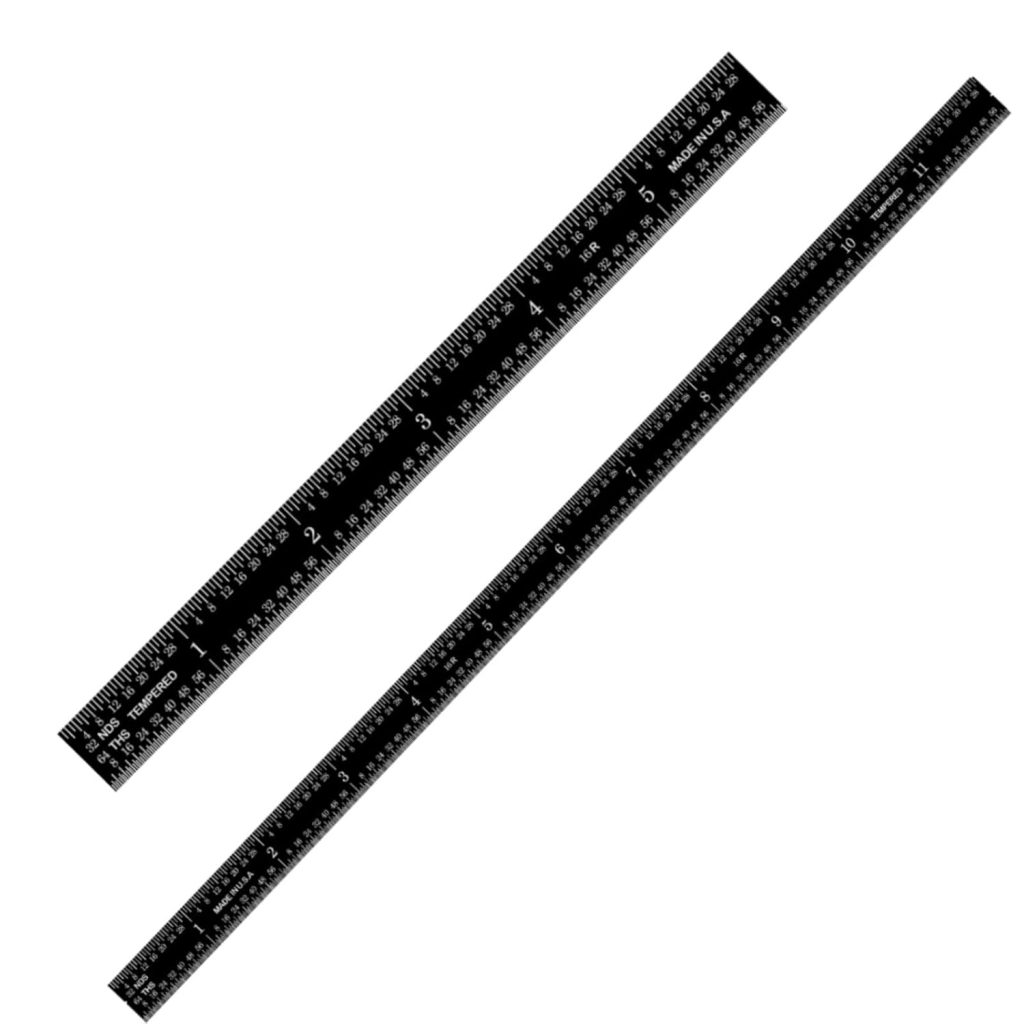

3. Steel Ruler

A steel ruler is an indispensable tool for anyone working on RC airplanes, providing the perfect straight edge needed for measuring and cutting. Unlike plastic or wooden rulers, steel rulers are more resistant to nicks and cuts, which makes them ideal for guiding cutting tools like X-Acto knives.

A popular choice is the Shinwa 12-Inch Steel Ruler, which is known for its precision and durability. The etched measurements ensure that markings won’t wear off over time, maintaining accuracy for the long haul. This ruler is particularly useful when you need to cut straight lines on balsa wood or foamboard, ensuring that parts like ailerons or fuselage sides are perfectly square.

Steel rulers are also valuable when checking the alignment of parts during assembly. For instance, ensuring that wing panels are straight before gluing can prevent issues with flight stability later on. By laying the steel ruler along the leading edge, you can immediately see if there’s any warping or deviation that needs to be corrected.

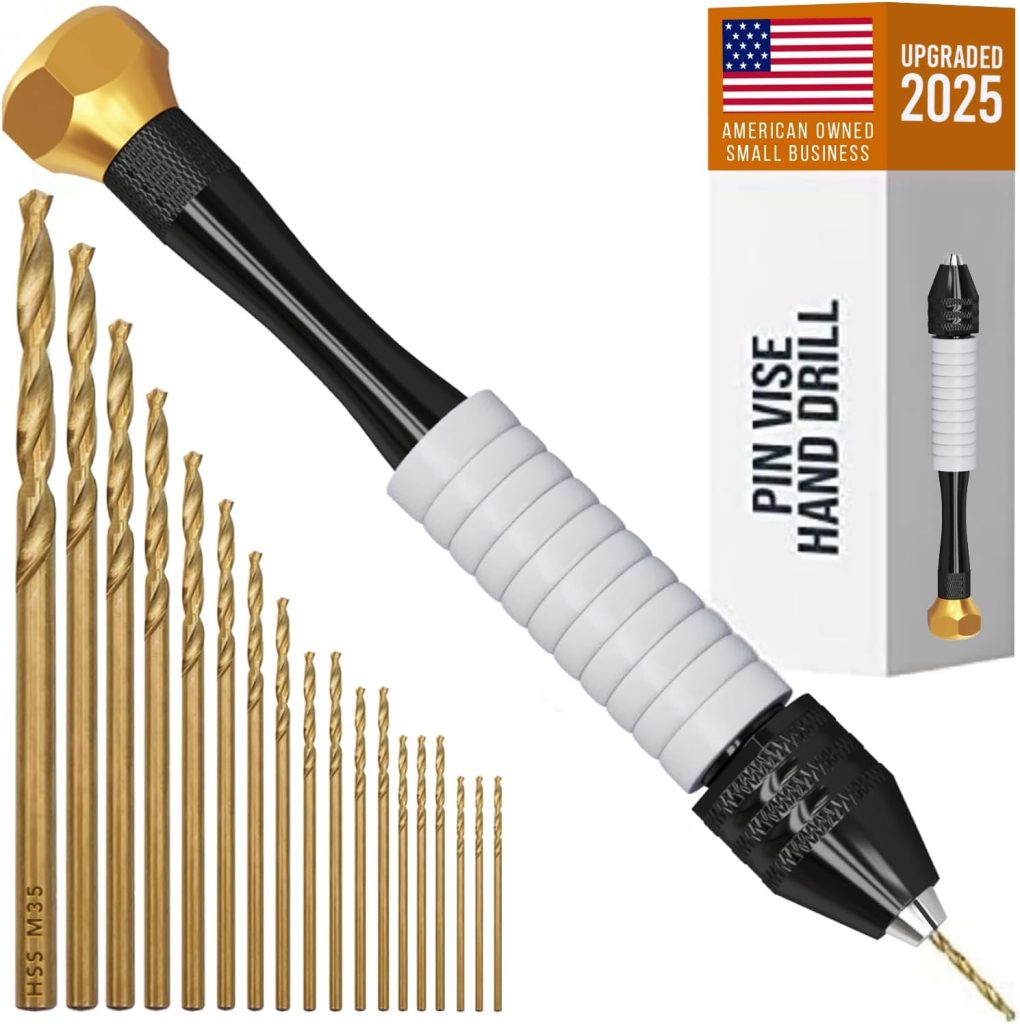

4. Pin Vise and Micro Drill Bits

A pin vise is a small, handheld drill that’s used for making precise, small-diameter holes in materials such as wood, plastic, and metal. The General Tools 94AA Pin Vise is a widely respected option due to its robust construction and ability to hold very fine drill bits securely.

Micro drill bits, which range from 0.1mm to 3mm in diameter, are essential for tasks like drilling pilot holes for screws or making holes for control linkages. For instance, when installing control horns on the control surfaces of your RC airplane, you’ll need to drill small, accurate holes for the mounting screws. Using a pin vise allows you to maintain complete control over the drilling process, preventing the bit from wandering and ensuring that the holes are perfectly aligned.

Additionally, when assembling the model’s fuselage or wing structure, you might need to drill small holes for running control cables or for securing servo mounts. The precision offered by a pin vise is unmatched by power drills, especially in delicate or intricate areas where a misaligned hole could weaken the structure or cause mechanical issues later on.

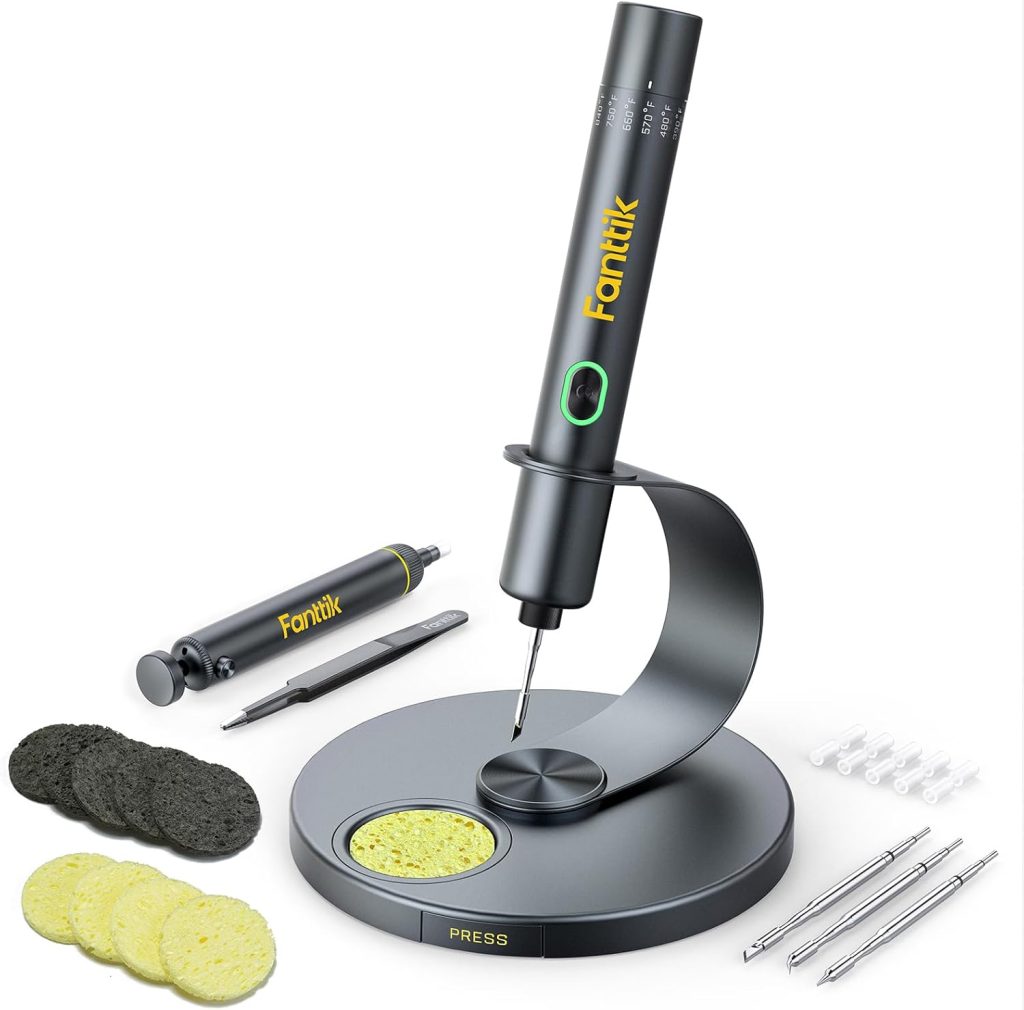

5. Soldering Iron and Soldering Station

A high-quality soldering iron is a must-have tool for anyone working with RC airplanes, particularly for electrical connections. The Hakko FX888D is a top choice among hobbyists because of its reliable performance and adjustable temperature control, which is critical for ensuring clean, solid solder joints.

In RC airplanes, soldering is often required when connecting battery leads, motor wires, and ESC (Electronic Speed Controller) connections. Cold or poorly soldered joints can lead to electrical failure, which could cause a loss of control mid-flight. Therefore, using a reliable soldering iron is crucial to ensuring these connections are as secure and conductive as possible.

Pairing your soldering iron with a good soldering station that includes a holder and sponge for cleaning the tip, like the Weller WLC100, enhances your workflow and safety. The station allows you to quickly clean the tip between solder joints, preventing oxidation and ensuring a clean, reliable connection every time. Additionally, using a fine-tip soldering iron helps when working with small components, such as attaching wires to connectors or soldering delicate electronics, where precision is key.

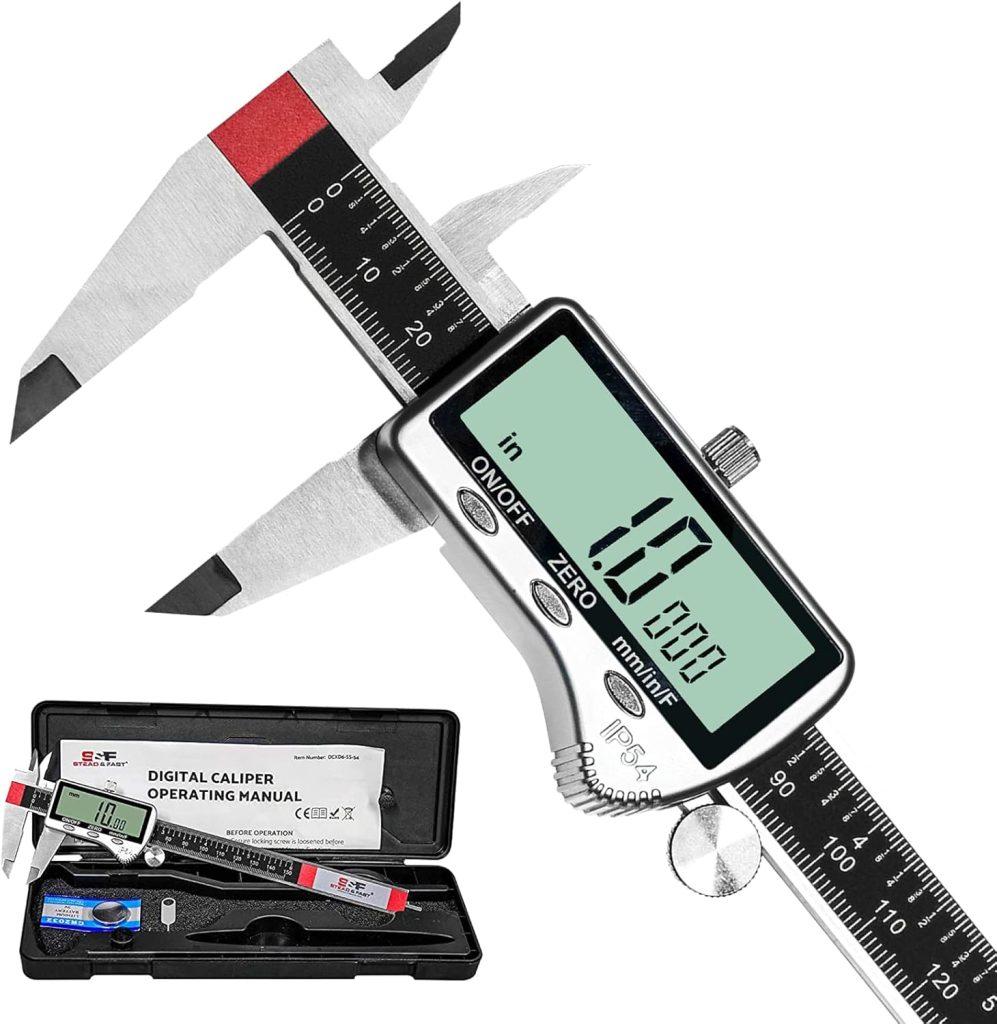

6. Digital Caliper

A digital caliper, such as the Mitutoyo 500-196-30, is an essential measurement tool that provides accurate readings down to the hundredths of a millimeter. In RC airplane construction, precision is vital, and a digital caliper ensures that all parts are cut, drilled, and assembled to exact specifications.

For instance, when creating custom parts or ensuring that purchased components fit perfectly, a digital caliper can measure the thickness of balsa sheets, the diameter of holes, or the distance between key structural elements. This is particularly important when dealing with tight tolerances, such as fitting bearings into a motor mount or aligning landing gear axles.

Digital calipers are also indispensable when checking the diameter of rods or tubes used in the control system, ensuring that pushrods and clevises fit perfectly without play. Furthermore, they’re useful for confirming the dimensions of prefabricated parts before installation, helping to avoid any misalignment or imbalance that could affect the aircraft’s performance.

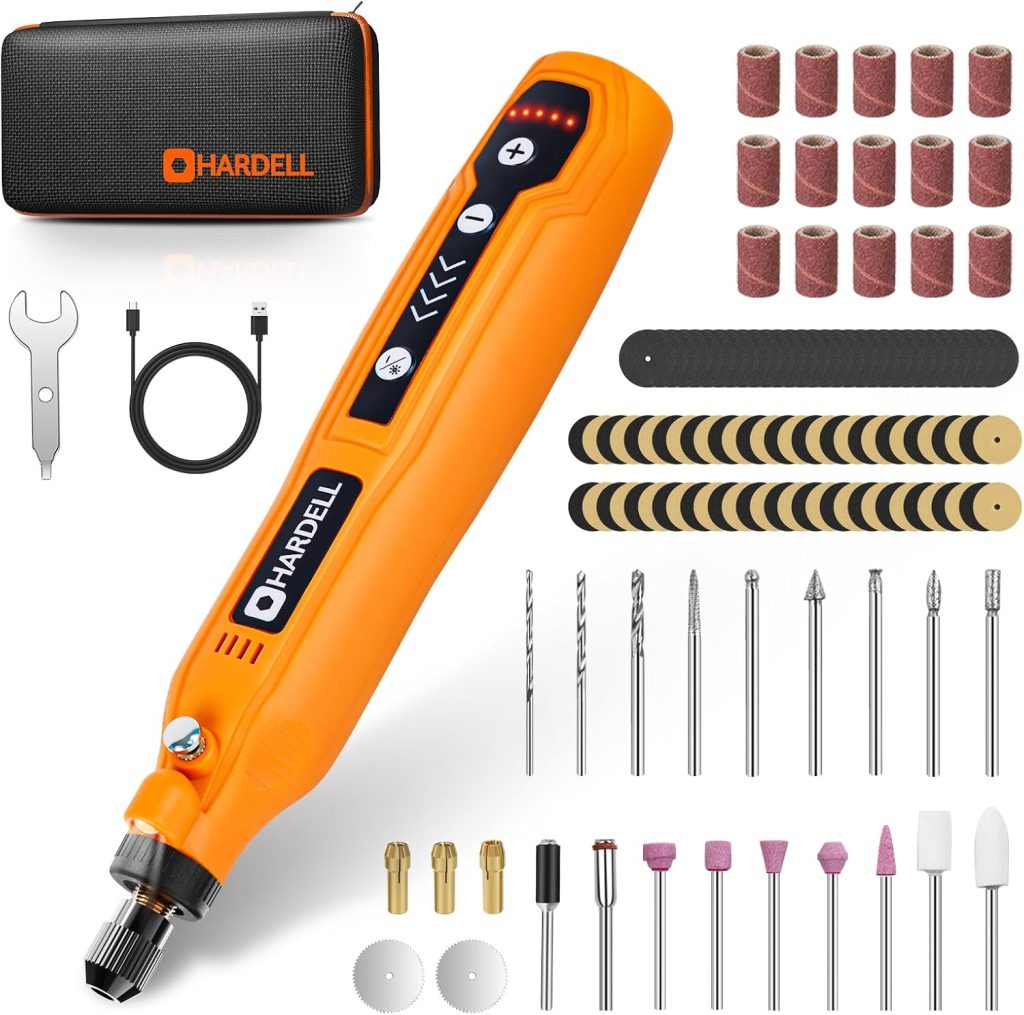

7. Rotary Tool (Dremel)

A rotary tool, commonly known by the brand name Dremel, is a versatile power tool that can handle a wide range of tasks, from cutting and grinding to sanding and polishing. The Dremel 4000, with its variable speed control and extensive accessory kit, is a popular choice among RC airplane builders.

In the context of RC airplane construction, a rotary tool is indispensable for tasks like cutting control rods to length, trimming excess material from fiberglass or carbon fiber parts, and smoothing out rough edges on cut metal or plastic components. For example, after cutting out a plywood motor mount, you might need to sand down the edges to fit precisely within the fuselage. A Dremel with a sanding drum attachment makes quick work of this task, ensuring a smooth, even surface.

Additionally, the rotary tool can be used to drill holes, especially in hard-to-reach places where a standard drill might not fit. It’s also excellent for engraving or adding details to parts, such as creating non-slip surfaces on control sticks or modifying servos to achieve better performance. The versatility and power of the Dremel make it a go-to tool for both builders and maintainers of RC airplanes.

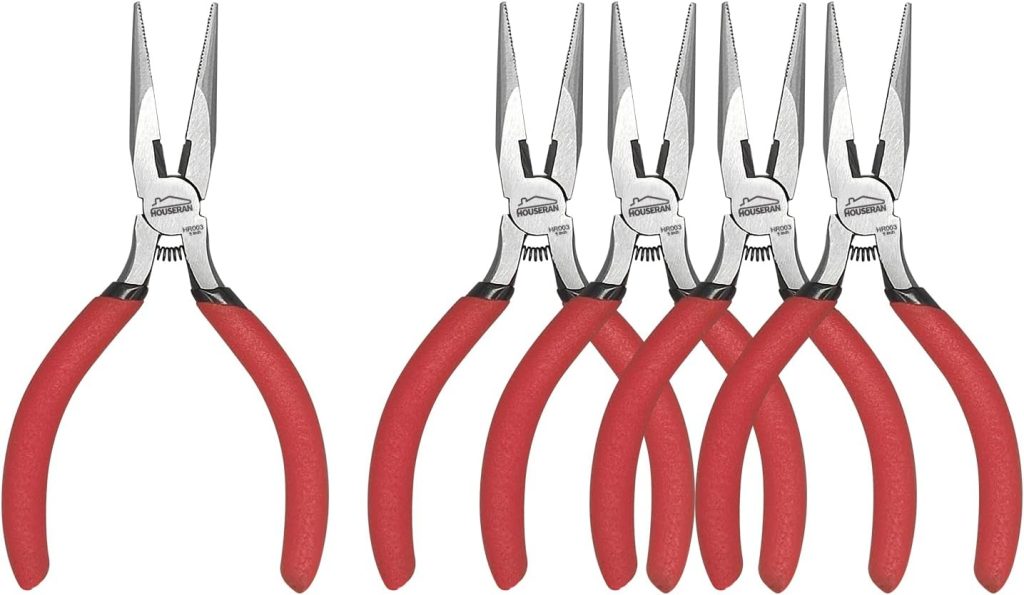

8. Needle-Nose Pliers

Needle-nose pliers are a staple in any RC airplane builder’s toolkit. The Klein Tools D203-6 Needle-Nose Pliers are a well-regarded option, known for their durability and fine tip, which allows for precision work in tight spaces.

These pliers are particularly useful when installing small parts, such as connecting control rods to servos or bending wire for custom linkages. Their fine tips enable you to grip tiny components securely without damaging them, which is crucial when working with delicate parts like micro connectors or tiny screws. Needle-nose pliers are also excellent for threading wires through tight spaces, such as routing antenna wires inside a fuselage or positioning cables in a crowded electronics bay.

Moreover, they are invaluable when making minor adjustments to the aircraft’s control system. For instance, if a pushrod needs a slight bend to achieve the correct geometry, needle-nose pliers allow you to make that adjustment with precision, ensuring smooth and responsive controls during flight. Their ability to reach into confined areas also makes them ideal for tasks like retrieving dropped screws or repositioning servo arms in tight compartments.

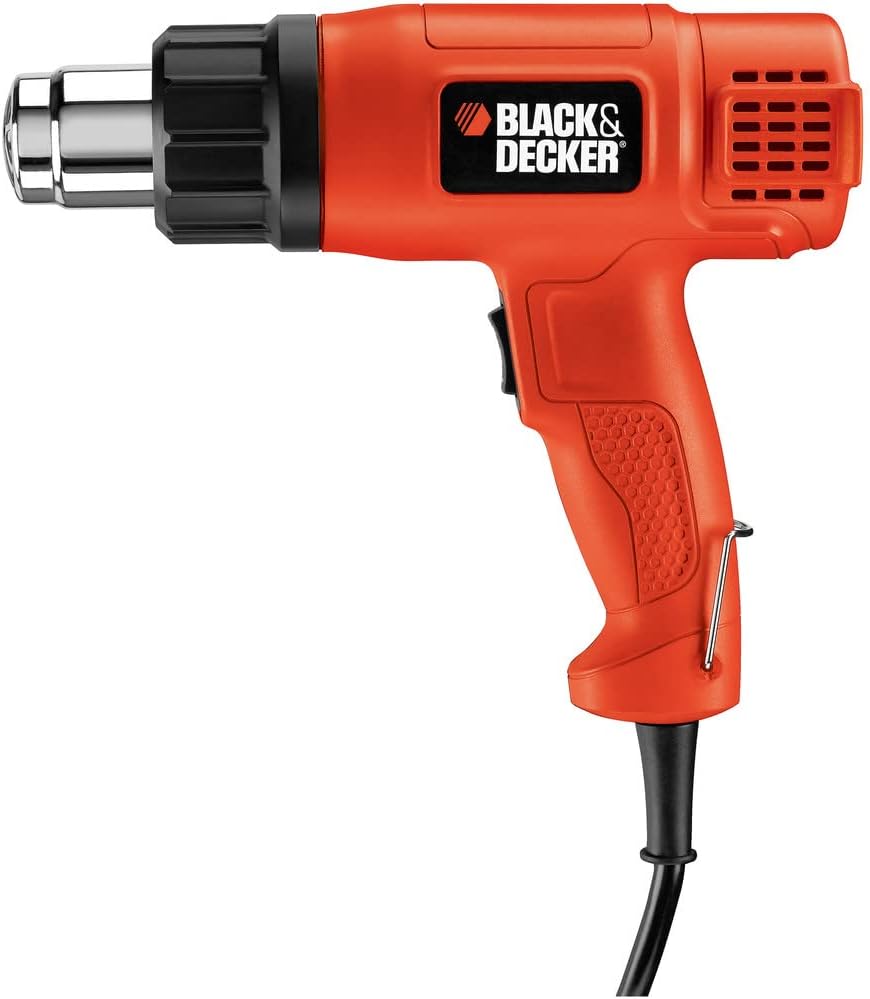

9. Heat Gun

A heat gun, such as the Wagner HT1000, is an essential tool for anyone working with shrink tubing and heat-sensitive materials in RC airplane construction. Heat guns are used to apply controlled heat to materials, causing them to shrink, soften, or bond together.

In RC airplane building, one of the most common uses for a heat gun is in shrinking heat shrink tubing. For instance, when you solder connections in your airplane’s wiring, it’s essential to insulate them properly to prevent short circuits. Heat shrink tubing is the go-to solution for this, and a heat gun makes it easy to apply. You simply slide the tubing over the joint, then use the heat gun to shrink it down snugly, providing both insulation and strain relief.

10. Clamps and Vices

Clamps and vices are crucial tools for ensuring that parts stay in place during assembly and while glue or epoxy cures. One of the most popular types is the quick-grip clamp, such as the Irwin Quick-Grip. These clamps are easy to adjust with one hand, making them perfect for securing parts together quickly and with controlled pressure.

During the construction of an RC airplane, clamps are often used to hold parts in alignment while glue sets. For instance, when joining wing halves, clamps ensure that the dihedral angle is maintained until the glue is fully cured. Similarly, when building up a fuselage from formers and stringers, clamps can hold everything together, ensuring that the structure remains true to the plans.

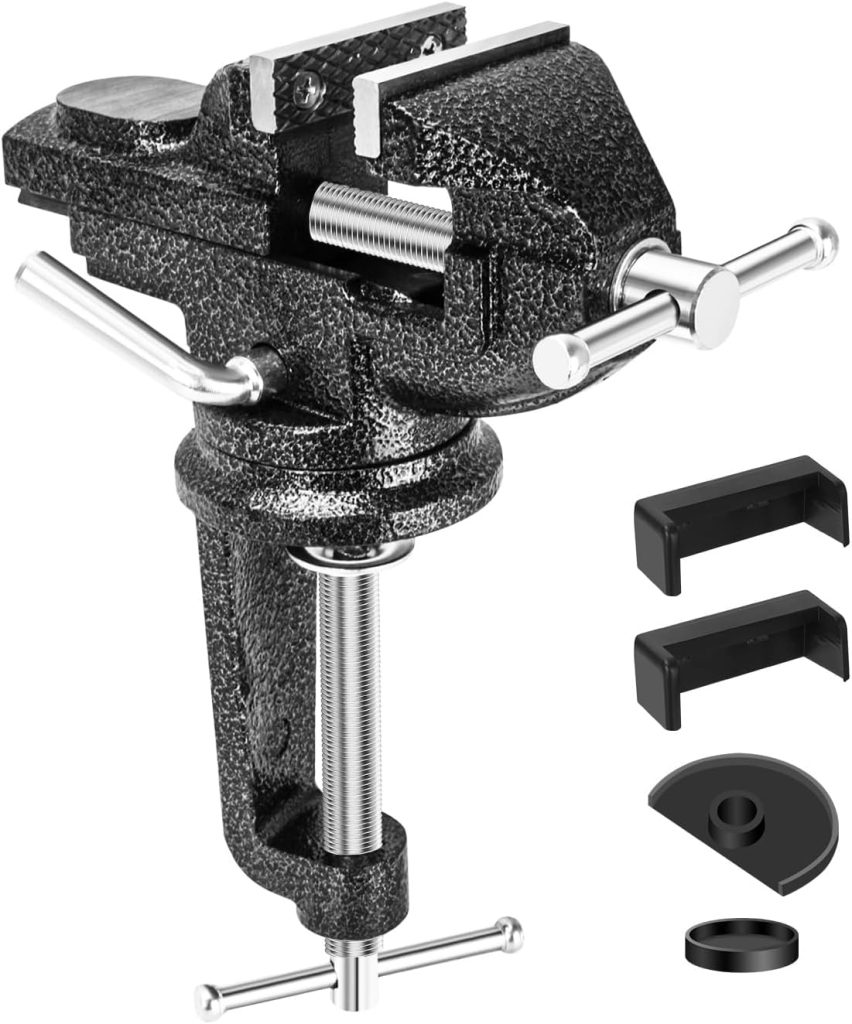

Vices, like the Wilton 11104 Wilton Bench Vise, are also invaluable, especially when working with metal components or when drilling. A small bench vise can hold landing gear struts or control horns securely while you drill holes or file edges, ensuring accuracy and safety. The vise allows you to work hands-free, providing stability and precision that would be difficult to achieve otherwise.

Both clamps and vices are also essential when performing repairs. For example, if you need to replace a broken spar or reinforce a joint, clamps will keep the new parts in place as the adhesive cures, ensuring a strong and reliable repair.

11. Sanding Blocks and Sandpaper

Sanding blocks and sandpaper are vital for shaping and smoothing the balsa wood and other materials used in RC airplane construction. A versatile option like the Great Planes Easy-Touch Bar Sander comes with a variety of sandpaper grits, allowing for both rough shaping and fine finishing.

In balsa airplane construction, sanding blocks are used to achieve smooth, even surfaces on wings, fuselages, and other components. After cutting parts from balsa sheets, the edges are often rough and need to be smoothed out before assembly. A sanding block ensures that these edges are perfectly straight and free of splinters, which is crucial for achieving a strong bond when gluing parts together.

Sanding is also a critical step in preparing the airplane for covering. Any imperfections in the wood surface will show through the covering film, so it’s important to sand the entire airframe to a smooth, even finish. This not only improves the appearance of the final model but also helps the covering material adhere better.

Different grits of sandpaper are used for different tasks. Coarse grits are used for shaping and rough sanding, while finer grits are reserved for final finishing. For instance, when blending the wing’s leading edge into the wing skin, you would start with a medium grit to remove material quickly, then move to a fine grit to achieve a smooth, aerodynamic surface.

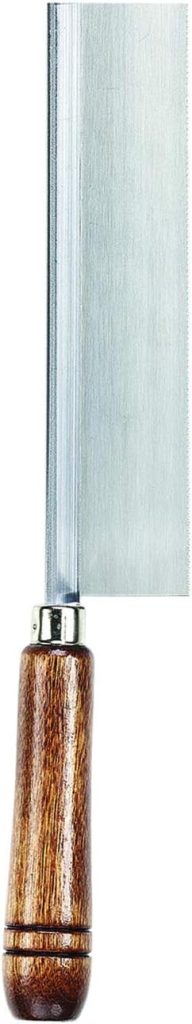

12. Razor Saw

A razor saw, such as the Zona 35-050 Razor Saw, is a fine-toothed saw designed for making precise cuts in wood, plastic, and thin metal. It is an essential tool for RC airplane builders, especially those working with balsa wood.

The razor saw is particularly useful for cutting out complex shapes from balsa sheets or trimming spars and stringers to length. Its fine teeth produce a clean, accurate cut with minimal tear-out, which is important for maintaining the strength and appearance of the parts. For example, when cutting notches in wing ribs to accommodate spars, a razor saw ensures that the cuts are straight and the fit is tight, which is essential for the structural integrity of the wing.

Razor saws are also used in the final fitting of components. If a part is slightly oversized, a few careful strokes with a razor saw can trim it down to the perfect size. This is often the case when fitting wing joiners or control surfaces, where precision is crucial for ensuring proper alignment and smooth operation.

In addition, a razor saw is invaluable for modifying existing parts or making repairs. For instance, if you need to remove a damaged section of the airframe, a razor saw allows you to make precise cuts that minimize damage to the surrounding structure, making it easier to fit replacement parts.

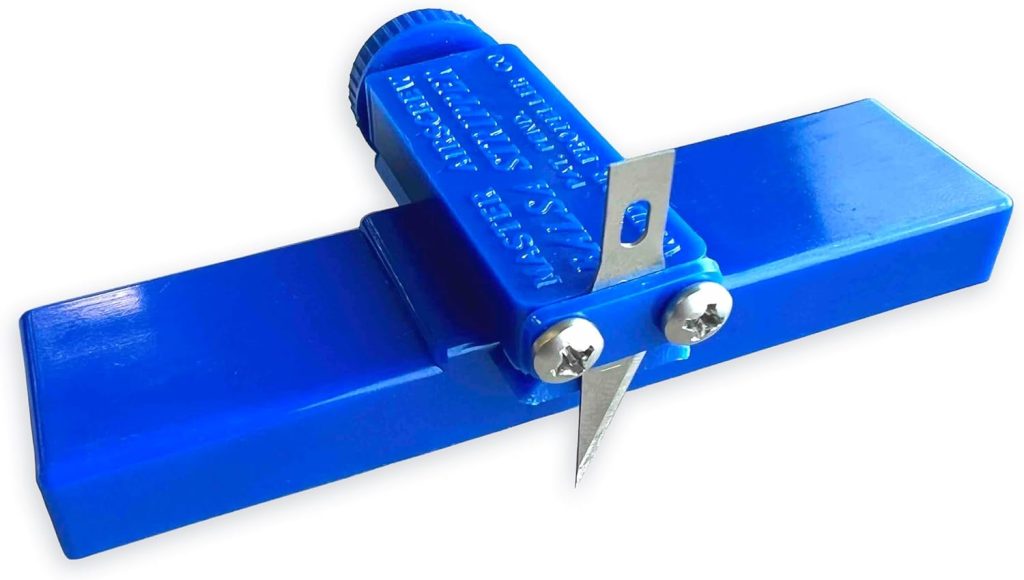

13. Balsa Stripper

A balsa stripper, like the Master Airscrew Balsa Stripper, is a specialized tool designed for cutting balsa sheets into precise strips of consistent width. This tool is particularly useful for scratch builders and those who need to create custom-sized stringers, spars, or other structural elements from larger balsa sheets.

The balsa stripper allows you to set the desired width of the strip, then simply guide the tool along the edge of the balsa sheet to produce a perfectly even strip. This is especially important when building up structures like fuselages and wings, where consistent strip size is crucial for maintaining symmetry and balance.

For example, when constructing a built-up wing, you may need several strips of balsa for the leading edge, trailing edge, and spars. Using a balsa stripper ensures that all these strips are the same width, which not only looks neater but also contributes to the structural integrity of the wing.

Another common use for a balsa stripper is in creating custom stringers for a fuselage. By stripping balsa sheets to the exact dimensions needed, you can create stringers that fit perfectly within the framework, reducing the need for sanding or adjusting after assembly. This tool is a time-saver and ensures a higher level of precision in your builds.

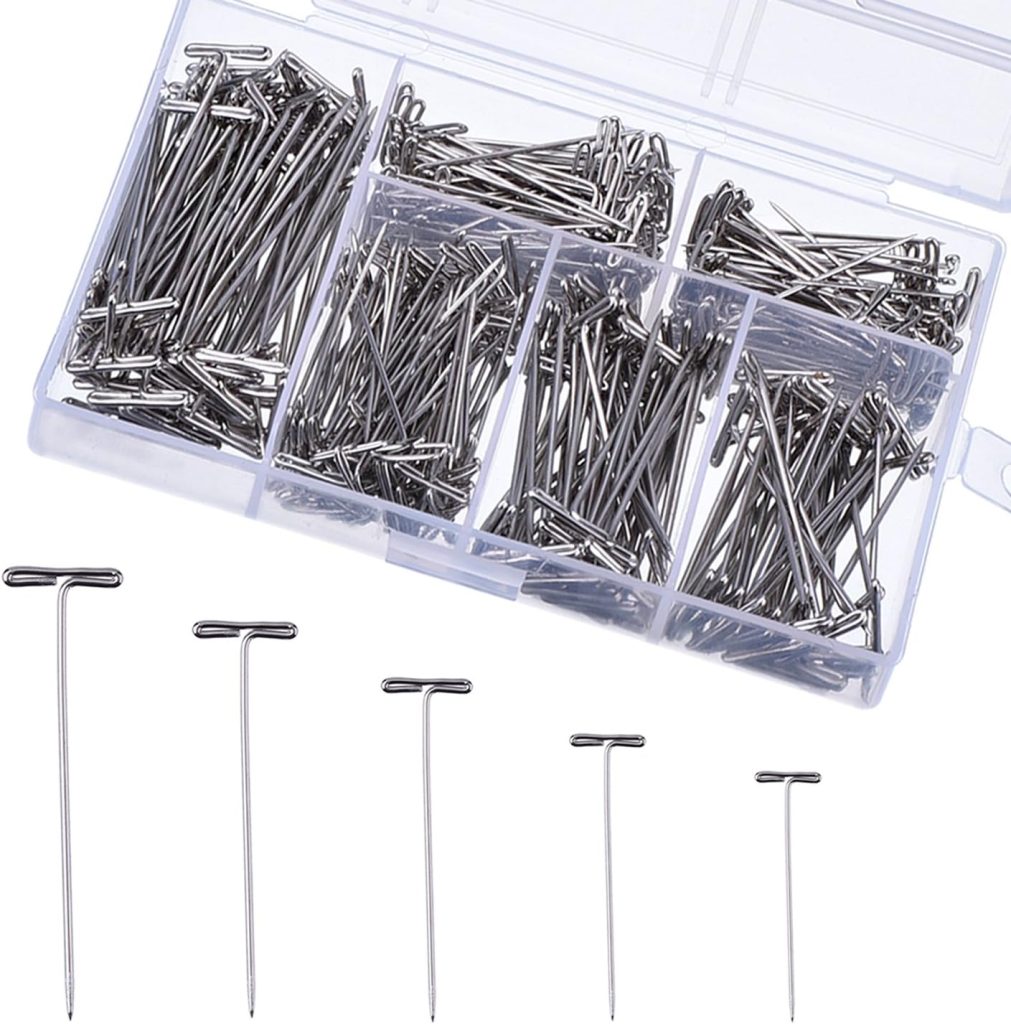

14. T-Pins and Building Board

T-pins and a quality building board are essential for holding parts in place during the assembly of an RC airplane, particularly when constructing balsa wood models. The Sig Manufacturing T-Pins are a popular choice because of their durability and sharp points, which can easily penetrate balsa and other softwoods.

T-pins are used extensively when building up structures such as wings, stabilizers, and fuselages over a set of plans. By pinning the parts directly to the building board, you can ensure that everything stays aligned and in place while the glue dries. This is crucial for maintaining the accuracy of your build, as even a slight misalignment can affect the airplane’s flight characteristics.

A building board, like the Great Planes Pro Building Board, provides a flat, stable surface to work on and is designed to withstand repeated use of pins without warping or becoming damaged. Some builders prefer to use a cork or foamboard surface, which can be easily replaced when it becomes worn.

During the construction process, T-pins hold everything in place, allowing you to focus on aligning parts correctly and ensuring that glue joints are secure. For example, when assembling a wing, you might pin the ribs and spars in place over the plans, then check the alignment before applying glue. This prevents any movement during the drying process, ensuring a straight and true wing.

15. Servo Tester

A servo tester, such as the Hitec Servo Tester, is a valuable tool for anyone building or maintaining RC airplanes. This device allows you to test servos independently of the receiver, ensuring that they are functioning correctly before installation.

Servos are critical components in an RC airplane, controlling the movement of the control surfaces like ailerons, elevators, and rudders. Ensuring that your servos are working correctly is essential for the safe operation of your model. A servo tester lets you check the centering, endpoint, and smoothness of the servo’s movement, helping you identify any issues before they cause problems in flight.

For instance, before installing a servo in the wing to control the ailerons, you can use a servo tester to check that it centers accurately and moves smoothly across its range. This allows you to make any necessary adjustments or replacements before the servo is installed in a location that might be difficult to access later.

Servo testers are also useful during maintenance and troubleshooting. If your airplane is not responding correctly to control inputs, a servo tester can help you determine if the problem lies with the servo or the radio system. By isolating the servo and testing it independently, you can diagnose issues more quickly and effectively.
